Product overview

This product is suitable for urban public power distribution, street light power distribution, industrial and mining enterprises, urban buildings, residential quarters, oil field terminals, hotels, parks and construction sites, etc. It can realize ring network or terminal power supply mode.

This product meets the following standards:

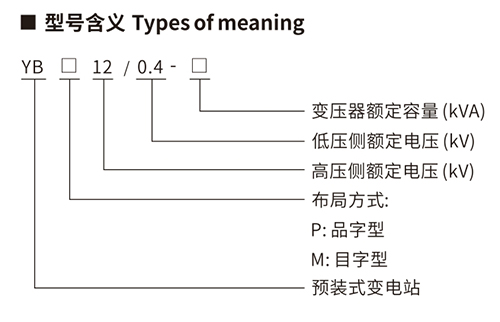

Model and features

Normal usage conditions
● Ambient temperature: upper limit +40°C, lower limit -15°C (with special technology, up to -45°C);
● Altitude does not exceed 2500m (with special technology, up to 4000m);
● Air relative Humidity: daily average value is not more than 95%, monthly average value is not more than 90%;
● Seismic intensity does not exceed 8 degrees;
● Not suitable for places with obvious pollution such as corrosive or flammable gases, water vapor, etc.
● Note: When the above normal usage conditions are exceeded, the user can negotiate with the manufacturer to determine.

Structural features
● This substation is composed of a high-voltage room, a transformer room and a low-voltage room, which can be arranged in an eye-shaped or flat-shaped structure;
● It has terminal, ring network or dual power supply modes;
● It can be made into a single or double transformer Power supply solution;
● Oil-immersed power transformer and dry-type power transformer can be selected:
● The box is equipped with sufficient natural ventilation openings and heat insulation measures to ensure the normal operation of all electrical equipment (forced cooling can be used if the user needs it);
● The "five-proof" functions are complete, easy to operate and maintain, and the operation is safe and reliable;
● The shell material is stainless steel, aluminum alloy, cold-rolled plate, color steel composite plate, non-metal or a combination of the two, which is aging-resistant, flame-retardant, anti-corrosion, waterproof, and water-proof. Dust-free, with long-term outdoor use conditions;
● Small size, light weight, beautiful appearance and harmonious with the environment;
● When SF6 load switch cabinet is selected, the overall size of the box transformer is small, which is more suitable for community construction and street light engineering renovation ;
● The high-voltage ring main unit can be equipped with a network automation terminal (RTU) to achieve reliable detection of short circuits and single-phase to ground faults. It has the "four remote" function to facilitate distribution network automation upgrades.

High voltage side

The high voltage of prefabricated substations is generally protected by a load switch and a fuse combination. After one phase of the fuse is blown, the three-phase linkage will trip. The load switches are available in pressure type, vacuum, sulfur hexafluoride and other types, and can be equipped with electric The operating mechanism realizes automated upgrades; the fuse is a high-voltage current-limiting fuse with an impactor, which has reliable action and large breaking capacity. For transformers above 800kVA, vacuum circuit breakers such as ZN12, ZN28, and VS1 can be used for protection.
Low voltage side

The main switch on the low-voltage side adopts a universal or intelligent circuit breaker, and the outlet switch adopts a new type of plastic case switch, which is small in size, has short arcing, and has flexible outlet. It has an intelligent automatic tracking reactive power compensation device, and has two types of switches: contactor and non-contact. Cutting method for users to choose.
Transformer

The prefabricated substation uses low-loss, oil-immersed, fully sealed S13, S20, and S22 series transformers. Resin-insulated or NOMEX paper-insulated environmentally friendly dry-type transformers can also be used. The transformers can be easily accessed.

Technical parameter

Overall dimension
