Product overview

● Fully insulated, fully sealed, maintenance-free, and reliable to ensure personal safety;

● Compact structure, the volume is only 1/3-1/5 of the European transformer of the same capacity, and the height is low;

● Sub-box structure can be adopted to avoid oil contamination in the transformer tank;

● The high voltage side adopts double fuse full range protection, which greatly reduces costs;

● It can be used as a ring network or as a terminal, and the cable head can be emergency plugged and unplugged when the load current is 200A;

● The box body is made of honeycomb double-sandwich composite board, which has the functions of temperature insulation and heat dissipation; an electronic phase loss protector is installed on the low-voltage side. When abnormal voltage occurs in the system, the main switch can be quickly disconnected;

● High-voltage side oil-immersed load switch or SF6 load switch, which can be upgraded electrically: laying the foundation for realizing distribution network automation.

● Adopt oil-immersed S13 or S20 series transformers with better performance.

Model and features

Technical parameter

Main technical data of the substation

Description							Unit		Specifications
Rated voltage							kV		10/0.4（高压HV/低压LV)
Max. operating voltage							kV		12（高压侧HV compartment)
Rated frequency							Hz		50
Rated Ca pacity							kVA		50-1600
Rated power frequency withstand voltage(lmin)							kV		35
Rated lighting impulse withstand voltage							kV		75
Cooling									Oil-immersed self-cooled
Rated breaking current of high voltage backup fuse							kA		50
Rated breaking current of plug-in fuse							kA		2.5
Air temperature							°C		-35~+40
Coil ternperatu re rise							°C		65
No load tap									±5％或±2X2.5%
Noise Level							db		50
Degree of protection									IP43

Main technical data of the Transformer
adopts the new S13 series transformer body, which has low loss, good overload capacity and strong short-circuit resistance. All fasteners have been anti-loosened and do not need to be hung; you can also choose the one with better performance. S20 series and S22 series transformer
New type S13 series transformer body used, with low loss, high overloading capacity, withstand high short circuit current,
all fixings are anti-loose, free from liftingcore; also the user can choose the better one: S20 and S22 series transformer.

容量kVA Capacity	电压kV Valtage		联接组标号 Connection	空载电流％ No-Load current			空载损耗W No-load loss				阻抗电压% Impedance voltage	负载损耗W Load loss
	高庄H.V	低压L.V		S13	S20	S22	S13	S20		S22		S13	S20	S22
50	10±5% 或 2X2.5%	0.4	Dyn11或 Yyn0	2.0	1.9	0.75	100	90		80	4.0	910	730	655
63				1.9	1.8	07	110	100		90		1090	870	785
80				1.9	1.7	07	130	115		105		1310	1050	945
100				1.8	1.55	0.65	150	135		120		1580	1265	1140
125				1.7	1.45	0.65	170	150		135		1890	1510	1360
160				1.6	1.3	0.6	200	180		160		2310	1850	1665
200				1.5	1.2	0.55	240	215		190		2730	2185	1970
250				1.4	1.1	0.5	290	260		230		3200	2560	2300
315				1.4	1.0	0.45	340	305		270		3830	3065	2760
400				1.3	1.0	0.4	410	370		330		4520	3615	3250
500				1.2	1.0	0.4	480	430		385		5410	4330	3900
630				1.1	0.8	0.4	570	510		460	4.5	6200	4960	4460
800				1.0	0.7	0.35	700	630		560		7500	6000	5400
1000				1.0	0.6	0.3	830	745		665		10300	8240	7415
1250				0.9	0.6	0.27	970	870		780		12000	9600	8640

Main technical data of the Load Switch

The load switch is an oil-immersed, three-phase linkage switch, spring operating mechanism; it can be opened and closed with load, and its opening and closing speed has nothing to do with the operating force. The types include two-station, four-station T-type, and four-station V. Models are available for selection.

项目 Description				单位 Unit		四工位环网负荷开关 4-positon ring load switch		二工位负荷开关 2-positon load switch
额定电流Rated current				A		630		315
额定短路关合电流Ratedshort-circuit makingcurrent				kA		31.5		31.5
额定短时耐受电流Ratedshort-timewithstand current				kA		12.5		12.5
额定短时耐受时间Ratedshort-timewithstand duration				s		2		2
机械寿命Mechanical endurance				次 times		2000		2000
雷电冲击耐受电压峰值全波 Rated lightingimpulse withstand voltage		相间对地 Betweenphasesandearth		kV		75		75
		隔离断口 Across theisolatingdistance				85		85
lmin工频耐受电压 Rated power frequency withstand voltage(lmin)		相间对地 Betweenphasesandearth		kV		42		42
		隔离断口 Across the isolatingdistance				48		48
额定峰值耐受电流Rated peak withstand current(peak)				kA		31.5		31.5

熔断器技术参数 Main technical data ofthe FuseMain technical data of the Fuse
American box transformer high-voltage side is provided by a backup protection fuse and a plug-in fuse in series to provide full range protection. The principle is simple, economical and reliable; the backup protection fuse is an oil-immersed high-voltage current-limiting fuse. It has a large breaking capacity and only operates when there is an internal fault in the transformer. The plug-in fuse is equipped with a double-sensitive fuse, which can provide dual current and temperature protection. After the double-sensitive fuse is blown, the fuse core can be easily replaced on site. 美式箱变高压侧由后备保护熔断器和插入式熔断器串联提供全范围保护，原理简单，经济可靠;后备保护熔断器为油浸式高压限流熔断器，开断容量大，仅在变压器内部故障时动作，插入式熔断器内装双敏熔丝，可提供电流与温度双重保护，双敏熔丝熔断后，可在现场方便地更换熔芯。

三相变压器容量(kVA) Three-phase transformer capacity			变压器初级电压(lOkV) Transformer primary voltage
			XRNT额定电流(A) XRNT rated current				PRNTl过载保护额定电流(A) PRNTl rated current overload protection
30			10				6
50			16				8
80			16				10
100			20				15
125			25				15
160			31.5				25
200			40				25
250			50				40
315			63				40
400			63				40
500			80				50
630			100				50,65
800			125				65
1250			160				100
1600			200				140

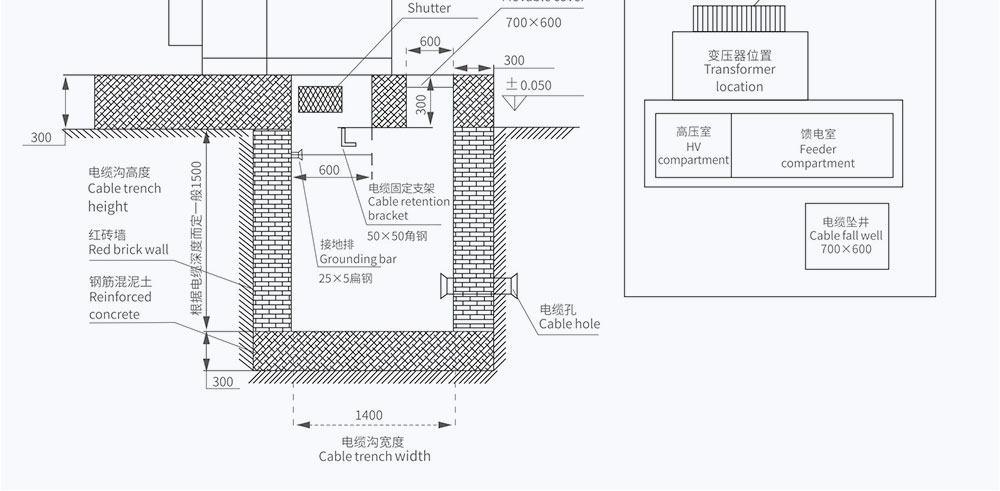

Overall dimension
